CNC Fiber Laser Cutting Machine 15000W High Performance
PENTA LASER Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.Penta BOLT fiber laser cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.
Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good, slitting rectangular cross-section shapes appear to be regular.
Technical Specification
| Model | BOLT 4020 |
| Rate output power | 15000 W |
| Rapid Speed | 200 m/min |
| Maximum Acceleration | 4.0 G |
| Accuracy | ±0.03 mm/m |
| Mechanical Repeatability | ±0.01 mm/m |
| Maximum cutting thickness of mild steel | 50 mm |
| Maximum cutting thickness of stainless steel | 50 mm |
| Working Table | 4000 mm ×2000 mm |
Advantages
The machine body's thermal processing technology, which can ensure the stability and precision;
High power specialized cutting head, which can support durable and stable cutting;
Unique cutting database for fast piercing, high speed cutting and thick plate cutting,cutting capacity for stainless steel and aluminum is up to 50mm;
Assemble with new version of Smart Manager 4.3CNC software, which optimize various of piercing mode, adopt new generation of frog jump management, and move fluently without any pauses;Thin materials' productivity promoted more than 25%. Metal obstructions can be detected to avoide collision to the uttermost in fast running while cutting.
Features
- IPG or Trudisk laser source from 1kw to 15kw at your choice
- Double servo motor driven synchronously, bring higher speed and acceleration
- High speed movement and quick startup and shutdown
- Pallet exchange at the same time to decrease the exchange time
- Double driving synchonous technology make sure high speed and precision cutting
- Fast pallet exchanger and full enclosure
- Handy embedded cutting database
- Auto Focus Cutting Head dedicated for high power (Precitec)
- Dedicated laser CNC that makes the best and most of the laser
Applications
The BOLT series are suitable for sheet-metal working, machine manufacturing, metal material cutting and parts manufacturing. especially for the cutting processing for moderately thick sheet(carbon steel,stainless steel,aluminum alloy).

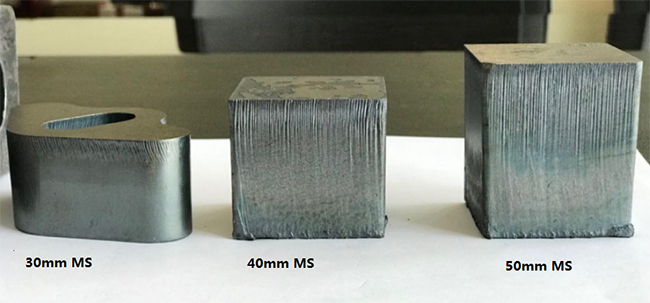

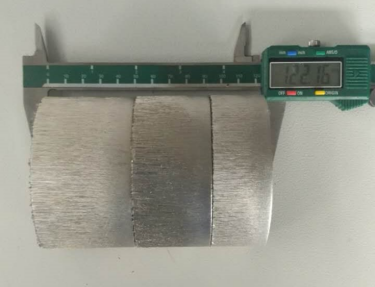

Samples
