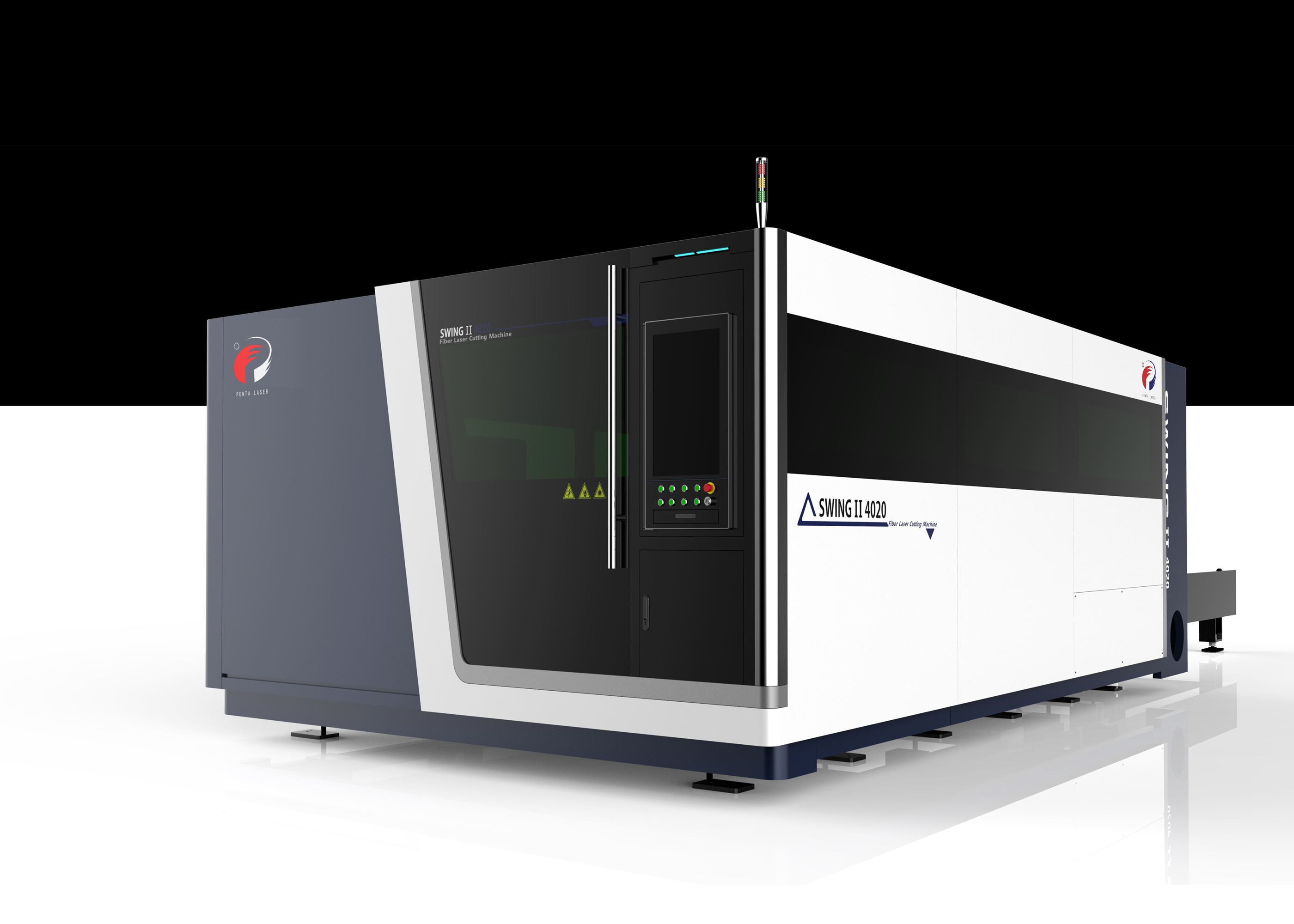

Fiber Laser Cutting Machine Manufacture PENTA LASER SWING 4020 6000W
Fibers are definitely preeminent in the current industry as short time passes with its host of benefits including both operating and maintenance cost saving and productivity increase.If you’re looking for a high performing fiber laser cutter that can set you apart from your competitors. Then I have to say Penta Swing is your smartest solution:
world class components including IPG laser source,
German Precitec auto focus cutting head
Italian MPC or Janpen Yaskawa servo motor & driver;
YYC Rack & Pinion ,
Lantek nesting software,
27’’ TFT big full touch screen, 90 degrees rotating, It has a large view and easy operation
Unique Function of SWING Model 6000W:
- IQ intelligent quality cutting:
- IQ intelligent quality cutting function is specifically design for 3KW and 6KW, allowing incredible cutting speed and better edge quality
- IQ cutting performs better for Al plates, can achieve a no--burr quality cutting edges
- Small hole precision cutting is available on IQ cutting
Machine Features:
- Varies power and pallet size available
- Faster and more precise piercing, precision hole cutting,
- 360° Anti-collision cutting head
- The machine with a confined working space,which improves the dust removal effect and avoid light pollution.
- The machine is used for cutting a variety of metal,the cutting effect is excellent and stable.
- Lifelong free remote diagnose smart cloud service
- Machine Frame designs with suction system and cooper plate protection
- Double servo motor driver, bring higher speed and acceleration,
- Rapid Speed:120m/min,Acceleration:1.5G
- Cutting database help users choose optimal cutting parameter
- Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2.5m available
Technical specifications
| Model | SWING 4020 |
| Power | 6000W |
| Rapid Speed | 120m/min |
| Maximum Acceleration | 1.5G |
| VDI 3441 Accuracy | ±0.03mm/m |
| Mechanical Repeatability | ±0.03mm/m |
| Maximum Thickness Mild Steel | 25mm |
| Maximum Thickness Stainless Steel | 20mm |
| Table Travel | 4000mm × 2000mm |
About PENTA LASER
Founded by Chutian Laser Group and Italian EL.EN. Group, Penta Laser is a Sino-Italian joint venture dedicated to R&D and manufacturing of high power laser cutting & welding equipment. It has set three main production bases in Wuhan, Wenzhou and Linyi. With world’s leading laser processing technology from Italy and core components provided by world-renowned brands, Penta Laser fully executes European standards and delivers high-quality products with stable and reliable performance. To provide prompt and standardized after-sales service for our customers, we have established customer service centers in 46 cities within China and more than 10 countries worldwide.
Hightlights
Switzerland RayTools laser head
Optimization of the optical configuration
Smooth and efficient air flow design
Rotary type focus adjustment,adjust fine and flexibly
Let cutting makes more easily with this best laser head

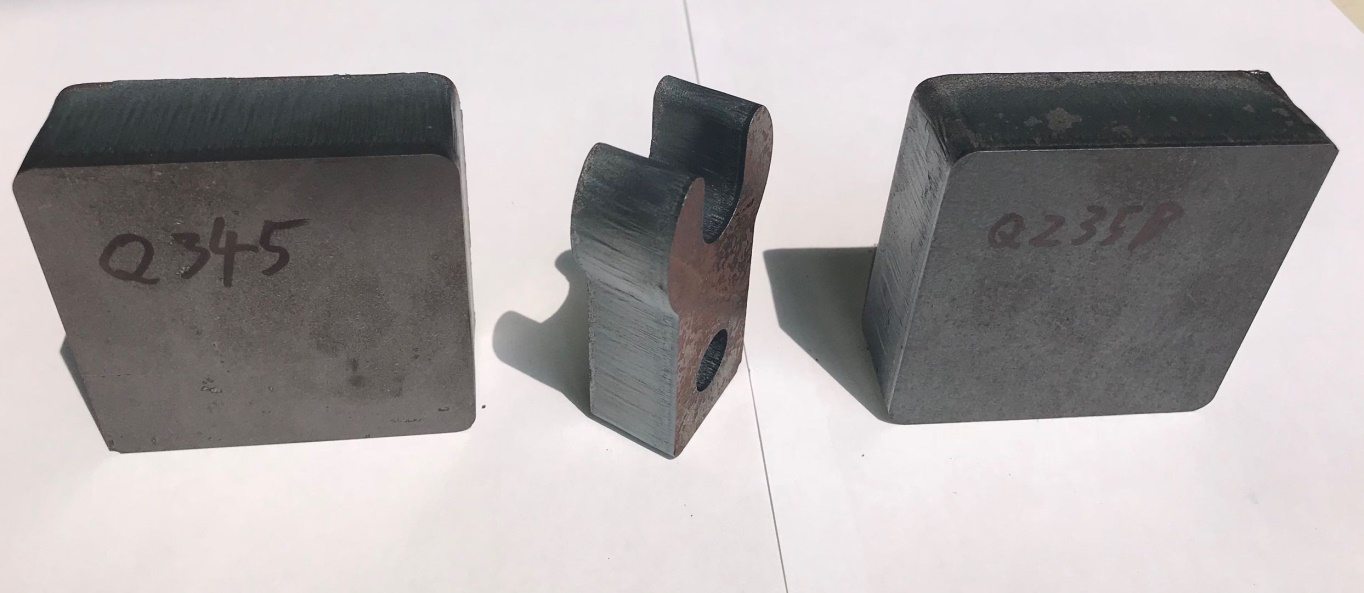

Samples
