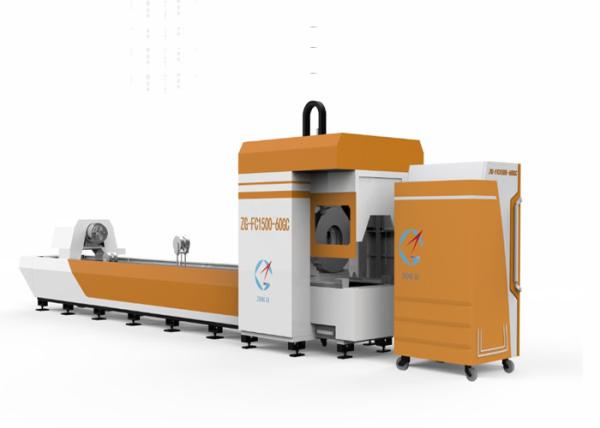

Power Bright Steel Tube Fiber Laser Cutting Machine Round Square Tube

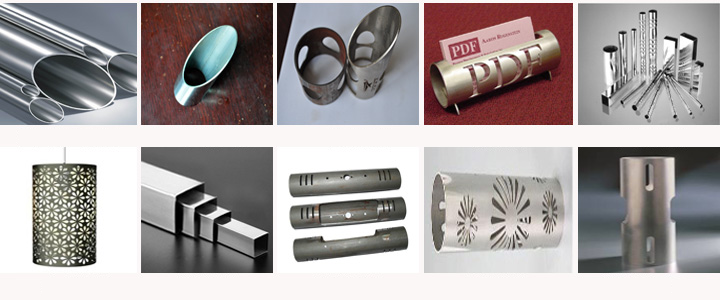

This series laser cutting machine is mainly used in various metal manufacturing and processing industries such as square tube cutting, circular tube cutting, advertising word cutting, aerospace, electronic appliances, kitchen utensils, auto parts, sheet metal and external processing.
Product Features:
1. Can be flexible cutting flate and all kinds of square tube, round tube.
2. The cutting lines are more precise, the cutting speed is faster, the working efficiency is higher, and the processing quality is better.
3. High stability, using the top fiber laser, stable performance, long service life.
4. With extremely low use cost, the power consumption of the whole machine is only 20%-30% of the similar CO2 laser cutting machine.
5. Power modulation for the ultimate cutting quality in the corners
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
8. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
Cutting Ability Introduction
| Thickness(mm) | 700W | 1000W | 1500W |
| MS | SS | MS | SS | MS | SS |
| N2 | O2 | N2 | O2 | N2 | O2 |
| | Round | Square | Round | Square | Round | Square | Round | Square | Round | Square | Round | Square | Round | Square | Round | Square | Round | Square |
| 1 | 150 | 130 | 180 | 120 | 150 | 150 | 200 | 150 | 220 | 150 | 200 | 180 | 250 | 180 | 250 | 180 | 250 | 200 |
| 2 | 70 | 60 | 60 | 30 | 60 | 50 | 90 | 70 | 70 | 50 | 70 | 60 | 100 | 80 | 80 | 60 | 80 | 65 |
| 3 | 50 | 45 | 20 | 18 | 35 | 30 | 60 | 50 | 40 | 35 | 50 | 40 | 70 | 55 | 50 | 45 | 55 | 50 |
| 4 | 30 | 25 | 12 | – | 25 | 25 | 35 | 30 | 20 | 20 | 30 | 25 | 40 | 35 | 25 | 25 | 35 | 30 |
| 5 | 18 | 16 | – | – | 18 | 18 | 20 | 18 | 12 | – | 20 | 20 | 25 | 20 | 16 | – | 25 | 25 |
| 6 | 16 | – | – | – | 16 | – | 16 | 15 | – | – | 18 | – | 20 | 18 | 12 | – | 20 | – |
| 8 | – | – | – | – | – | – | – | – | – | – | – | – | 15 | 12 | – | – | – | – |
| 10 | – | – | – | – | – | – | – | – | – | – | – | – | 12 | – | – | – | – | – |
Technical Specification
| Laser Type | Fiber-optic laser |
| Output Power | 2000W/3000W/4000W/6000W |
| Laser Working Medium | Erbium-doped fiber |
| Power Stability | 3% |
| Light Speed Quality BPP | ≥3.5.mm×mrad |
| Minimum Line Width | ≤0.15mm |
| Laser Power Satbility | ±1% |
| Working Time | 24hrs |
| Optical System | Optical Fiber Transmission |
| Laser Wavelength | 1070nm |
| Beam Quality | <0.373mrad |
| Positioning accuracy | ≤ ±0.02mm/m |
| Electricity Demand | 380V/50HZ |
Company Introduction
PENTA LASER is the joint-venture by El.En and Chutian Laser Group, both accumulating in laser industry for over 30 years. PENTA LASER is devoted in making high power laser cutting system, importing advanced technology from Italy and more than 90% of the parts are originally imported from famous brands company, the final integration is done is china under the quality testing by Italian engineers.
PENTA LASER sticks to its principle of quality first, innovation driven and service oriented, we expect to creat laser application revolution in the smart manufacturing era, and creat value for customers.

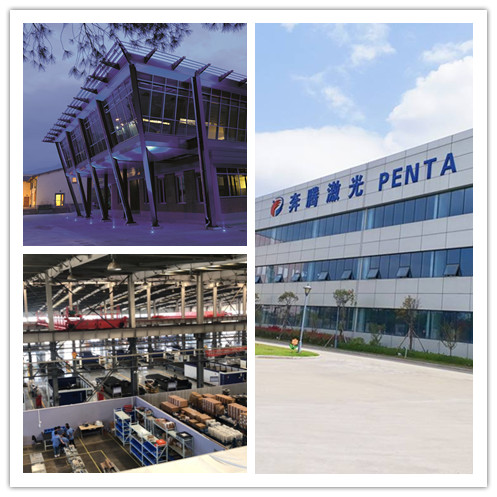

With the rapid development of PENTA LASER, we now have two manufacture bases located in Wenzhou(50,000㎡) and Wuhan(13,000㎡), and in 2019, we will start the construction of Shandong factory in Linyi,forming a situation of tripartite confrontation of East, Middle and North of China.
